LED Status

The body camera includes front and top status LEDs. The brightness of each LED can be adjusted independently in the camera menus.

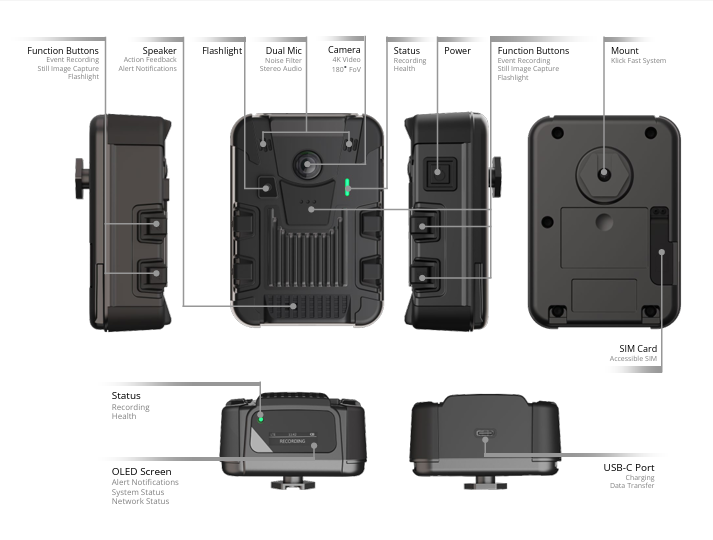

LED status layout

LED State Reference

Camera State Front LED Top LED
Power On (booting) Flashing cyan LED Flashing Cyan Flashing cyan LED Flashing Cyan
Idle and ready (first boot) Flashing blue LED Heartbeat Flashing Blue Flashing blue LED Heartbeat Flashing Blue
Idle and ready Solid blue LED Solid Blue Solid blue LED Solid Blue
Change Wi-Fi configuration Flashing blue LED Heartbeat Flashing Blue Flashing blue LED Heartbeat Flashing Blue
Recording Flashing red LED Heartbeat Flashing Red Flashing red LED Heartbeat Flashing Red
Media streaming Flashing red/green LED Flashing Red/Green Flashing red/green LED Flashing Red/Green
Charging Flashing yellow LED Flashing Yellow Flashing yellow LED Flashing Yellow
Fully charged Returns to previous state Returns to previous state
Critical problem Solid red LED Solid Red Solid red LED Solid Red
Privacy mode Solid orange LED Solid Orange Solid orange LED Solid Orange
