Display View

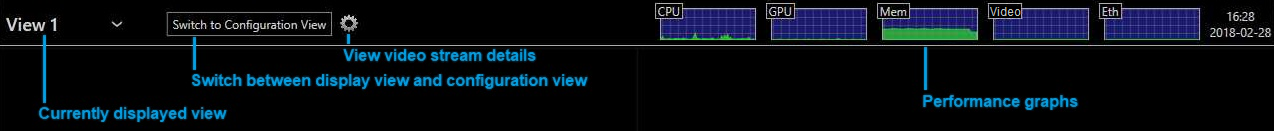

The following controls are available on the display connected to the device.

• Currently Displayed View or Sequence: In the top left corner appears the view or sequence currently displayed. To select a different view, click the down arrow beside the view name. Views are configured in the configuration interface.

• Switch to Display/Configuration View: This button toggles between displaying video and the configuration interface.

• Video Streams Details: When in display view, toggle this button to display performance details about each video tile:

  • Video stream name and URI displayed in the video tile
  • Current connection state
  • Stream Resolution
  • Current framerate and bitrate
  • Network packet lost count (displayed only when one or more packets are lost)

• Performance Graphs: These graphs show the device's recent resource usage.

  • CPU: shows the main processor's activity
  • GPU: shows the graphics adapter's activity
  • Mem: shows the system's RAM memory utilization
  • Video: shows the video streaming data rate
  • LAN: shows the traffic on the wired LAN interface
